Presence Detector CyGUARD Intense Traffic

THE PRODUCT

Crossing and ways through always represent a risk of collision between pedestrians and vehicles. CyGUARD alerts people of vehicle transit in the surrounding area by emitting acoustic warning and flashing light signals. Consequently any person in the area is fully alerted of the potential danger.

HOW DOES IT WORK

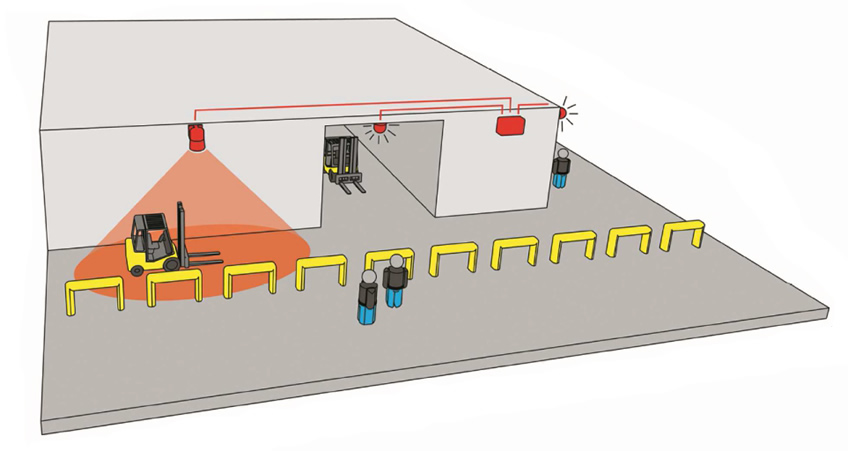

CyGUARD detects the approaching vehicles thanks to a microwave radar module. The central unit activates a flashing light and alarm whenever a vehicle enters in the detected area.

INSTALLATION

The centarl unit can be connected to any 220V electrical system. All other devices (sensors, flashing lights, etc.) joint the central unit with no need to be integrated into preexisting systems.

ADAPTABILITY

Sensors and control unit offer a wide range of customizable features for maximum adaptability.

EXTENSION AND UPGRADE

Central unit provides a large number of inputs and outputs. System can be integrated by additional services at any time, without the need of substantial changes.

CONTROL UNIT

unitate-control

Supply voltage

230V AC

Output type

ON/OFF

Dimensions

25cm x 15cm x 10 cm

Customizable functions

– alarm duration
– sensor / alert unit coupling
– output voltage

SENSOR

senzor

Supply voltage

12-24VAC / 12-24V DC

Current

40mA max

Frequency

24 – 24,25 GHz

Range

From 1m to 10 m (ajustable)

Detectable speed

0.1m/s min

IP Grade

IP65

Dimensions

16cm x 9.5cm x 11 cm

Customizable functions

– Sensivity
– Movement direction
– Output duration

ALERT UNIT

unitate-semnal-luminos

Supply voltage

12-24VAC / 12-24V DC

Sound volume

65dB min – 105dB max (ajustable)

Light type

Fixed or flashing

IP grade

IP65

Dimensions

9cm x 8 xm

Customizable functions

– Light type
– Volume
– Sound Type

cygurad-ex-3
